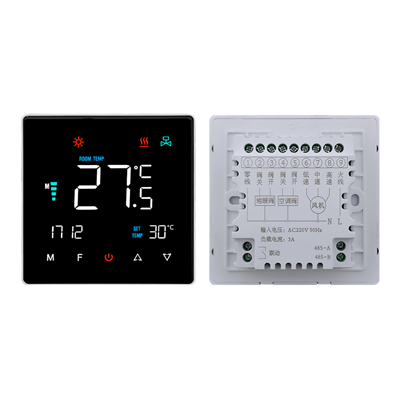

8923RHKLD-WIFI FCU & Floor Heating Thermostat
Key Specifications
· Integrated AC & floor heating thermostat for fan coil unit (FCU) and hydronic floor heating (water system)
· WiFi MI App available · RS485 connecting interface
· Four-chip design · Linkage function available · Rumble motor inside
· LCD color front display · Humidity display
· 86×86×40mm · 210g
Why Choose 8923RHKLD-WIFI
· WiFi MI App – Remote control via Mi Home (MI) App for smart scheduling and operation
· RS485 Modbus – Built-in RS485 interface for building automation and central control
· Four-Chip Design – Enhanced processing stability and reliability
· Linkage Function – Optional device-to-device automation (e.g., with fresh air or curtains)
· Rumble Motor – Built-in vibration/haptic motor for tactile feedback (e.g., button confirmation)
· LCD Color Display – Clear, intuitive interface with vibrant color screen
· Humidity Display – Real-time room humidity monitoring for improved comfort
· Compact Size – 86×86×40mm fits standard wall boxes
· Sturdy Build – 210g for reliable quality
Operation Functions
1. Basic Operation Modes
– Power On/Off: One-key control to turn the thermostat on or off.
– Cooling Mode: Provides cooling and controls the cooling valve.
– Heating Mode: Provides heating and controls the heating valve.
– Fan Mode: Runs fan only without cooling or heating.
– Fan Speed: Adjustable to Low, Medium, High, and Auto.
2. Temperature Adjustment
– Manually set desired temperature between 5°C and 35°C.
– High precision temperature control with ±1°C accuracy.
3. Child Lock & Timer Function
– Child Lock: Prevents misoperation by children.
– Timer: Supports 3-period cycle timer for auto on/off control.
4. Sleep Mode
– Automatically adjusts temperature for comfortable sleeping.
– Runs for 8 hours then exits automatically, saving energy.
5. Time Setting
– Allows manual time adjustment.
– WiFi version syncs time automatically from the internet.
6. Temperature Calibration
– Calibrates temperature display for accurate reading.
7. Power Failure Memory
– Restores previous settings automatically after power recovery.
8. Anti-Freezing Protection (Optional)
– Activates output automatically at low temperature to prevent freezing.
9. Fault Alarm
– Shows E1 code and stops output when sensor error occurs.
10. Factory Reset
– Restores all parameters to default settings.
11. Advanced Settings
– System type, temperature limits, fan control, backlight, and more customizable parameters.
