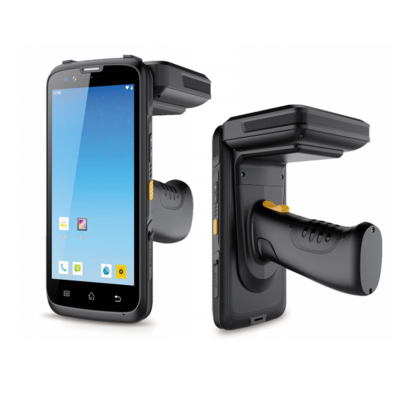

MH6762-15MH RFID Smart Handheld Terminal (1‑15m Range)
Key Specifications
· UHF read range: 1‑15m
· Operating system: Android 12
· Processor: MTK 6762 octa‑core 2.0GHz
· Memory: 3GB+32GB (optional 4GB+64GB)
· Battery: 3.7V / 10000mAh non‑removable polymer lithium (standby >600h, ~16h use)
· Display: 5.0″ (optional 5.72″ full screen), 1280×720 / 1440×720, Gorilla Glass 3
· Cameras: Front 5.0 MP, Rear 13.0 MP with autofocus and flash
· Connectivity: 4G Full Netcom (LTE FDD B1/3/5/7/8/20), Wi‑Fi 2.4GHz/5GHz 802.11 b/g/n/a/ac, Bluetooth 4.0 (BLE), NFC (ISO/IEC 14443A, 1‑3cm)
· Barcode scanning: 1D/2D
· Biometrics: Fingerprint recognition, Facial recognition
· ID card decryption supported
· Dimensions: 178 × 83 × 17 mm · Weight: ~580g
· Protection: IP65
· Speaker: 8Ω/0.8W waterproof · Microphone: built‑in
Why Choose This Handheld Terminal
· Ultra‑Long UHF Range – Reads RFID tags from 1 to 15 meters, ideal for warehouse, retail, and toll collection
· High Performance – Android 12 with octa‑core processor and up to 4GB+64GB memory for smooth multitasking
· All‑Day Battery – 10000mAh provides ~16 hours of operation, 600+ hours standby
· Multiple Data Capture – Combines UHF RFID, 1D/2D barcode, NFC, fingerprint, and facial recognition
· Rugged & Reliable – IP65 dust/water resistant, Corning Gorilla Glass 3 touch screen
· Versatile Connectivity – 4G LTE, dual‑band Wi‑Fi, Bluetooth, and NFC for seamless integration
· Secure Access – Built‑in fingerprint sensor and front camera for facial recognition and ID decryption
Operation Functions
1. UHF RFID Scanning
Long-range UHF reading (1-15m) for fast and accurate asset tracking, inventory management, and toll collection.
2. 1D/2D Barcode Scanning
Integrated barcode scanner for versatile data capture in retail and logistics.
3. Fingerprint Recognition
Built-in fingerprint sensor for secure user authentication and access control.
4. Facial Recognition
Front camera (5.0 MP) supports facial recognition for enhanced security applications.
5. ID Card Decryption
Capable of decrypting ID cards for identification and access management.
6. 4G Full Netcom & Data Connectivity
Supports 4G LTE (multiple bands), dual-band Wi-Fi (2.4GHz/5GHz), Bluetooth 4.0 (BLE), and NFC (ISO/IEC 14443A, 1-3cm read range) for seamless communication.
