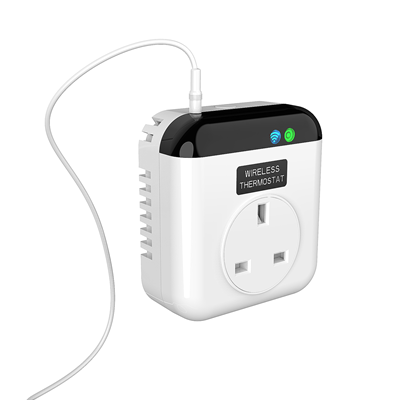

AC700N Smart Plug Thermostat
Key Specifications
· Smart plug programmable thermostat (wireless control)
· Wireless control via Smart Life App (available on App Store & Google Play)
· 200m long‑distance WiFi
· Programmable thermostat mode: 7‑day flexible scheduling
· External temperature sensor (length 55cm)
· Voice App optional
· Input voltage: 90‑250V · Output voltage: 110‑250V
· Load capacity: ≥3520W · Load current: 10A/15A/16A optional
· Temperature measurement range: –20°C to +70°C
Why Choose AC700N
· Long‑Range WiFi – 200m long‑distance WiFi ensures reliable remote connection
· Smart Life App – Wireless control via Smart Life App for scheduling, monitoring, and voice integration (optional voice control)
· 7‑Day Programmable – Flexible weekly scheduling for energy saving and comfort
· External Sensor – Includes 55cm external temperature probe for precise temperature measurement at the desired location
· High Load Capacity – Supports up to 3520W with optional load currents (10A/15A/16A) for various appliances
· Wide Voltage Range – Input 90‑250V, output 110‑250V, suitable for global use
· Wide Temperature Measurement – Measures from –20°C to +70°C for diverse applications
Operation Functions
1. Real-time remote device management function
Connect the plug to your mobile phone via the Smart Life App under any internet environment. You can view the operating status of connected heating and cooling equipment and manually switch the devices on or off from anywhere remotely. The App supports both iOS and Android systems for full cross-platform operation.
2. Automatic temperature schedule operation function
Set custom target temperature values, operation cycles and countdown tasks on your smartphone. The plug will automatically activate or cut off power to connected heaters, air conditioners and coolers based on the real-time ambient temperature collected by the external sensor, to maintain a stable comfortable temperature and reduce unnecessary power consumption.
3. Hands-free voice control linkage function
Link the device to Google Assistant or Amazon Alexa smart voice platforms. You can send simple voice commands to directly control the power switch of all temperature-controlled equipment plugged into this unit without picking up your mobile phone.
4. External ambient temperature collection function
Connect the matched 55cm-long temperature probe to the 3.5mm dedicated sensor port. The plug continuously detects surrounding temperature within the range of -20°C ~ +70°C (-4℉ ~ 158℉), and feeds real-time temperature data back to the App to support automatic temperature adjustment logic.
5. Multi-region universal power drive function
Adopt a 90–250V wide-voltage input design that adapts to global 50Hz/60Hz mains power. The temperature control output supports a maximum 16A load, and matches the rated power standards of EU, AU, UK and US regions to drive most plug-in heating and cooling appliances safely and stably.
6. Multi-layer electrical safety protection function
Built-in overload fuse automatically cuts off power when the load exceeds the rated value to avoid circuit damage. The temperature sensor port uses low-voltage power supply to eliminate electric shock risks during probe contact. The socket is equipped with a childproof safety shutter to prevent accidental electric contact by children.
7. WiFi & Bluetooth dual communication pairing function
Support WiFi and Bluetooth dual transmission modes. Bluetooth enables fast local device pairing during initial setup, while WiFi maintains long-distance cloud connection to realize uninterrupted remote control and data synchronization between the plug and mobile App.mote control and data synchronization between the plug and mobile App.
