T603 Fan Coil Thermostat: 2-Pipe vs 4-Pipe Application Guide
In this article, you will learn:
- Why Choosing the Right Fan Coil Thermostat Matters
- 2-Pipe vs. 4-Pipe Fan Coil System Overview
- Key Specs: How T603 Matches Both Systems
- T603 Core Functions and Control Logic
- Local Control vs. BMS / Supervisory PC Centralized Control
- What to Verify with Your Supplier Before Ordering
The T603 fan coil thermostat is a cost-effective and reliable solution for both 2-pipe and 4-pipe FCU systems in commercial and residential HVAC projects. This article provides an application guide for the T603 fan coil thermostat, compares 2-pipe and 4-pipe systems, and explains how to choose the right control method. It is intended to help contractors, distributors, and project owners make a more informed thermostat selection.
Why Choosing the Right Fan Coil Thermostat Matters
Choosing the right fan coil thermostat is an essential step in commercial and residential HVAC projects. It affects room comfort, system stability, energy efficiency, and overall project cost. The T603 fan coil thermostat is a cost-effective and reliable FCU thermostat compatible with both 2-pipe fan coil systems and 4-pipe fan coil systems. It is widely used in hotels, office buildings, villas, hospitals, and renovation projects.

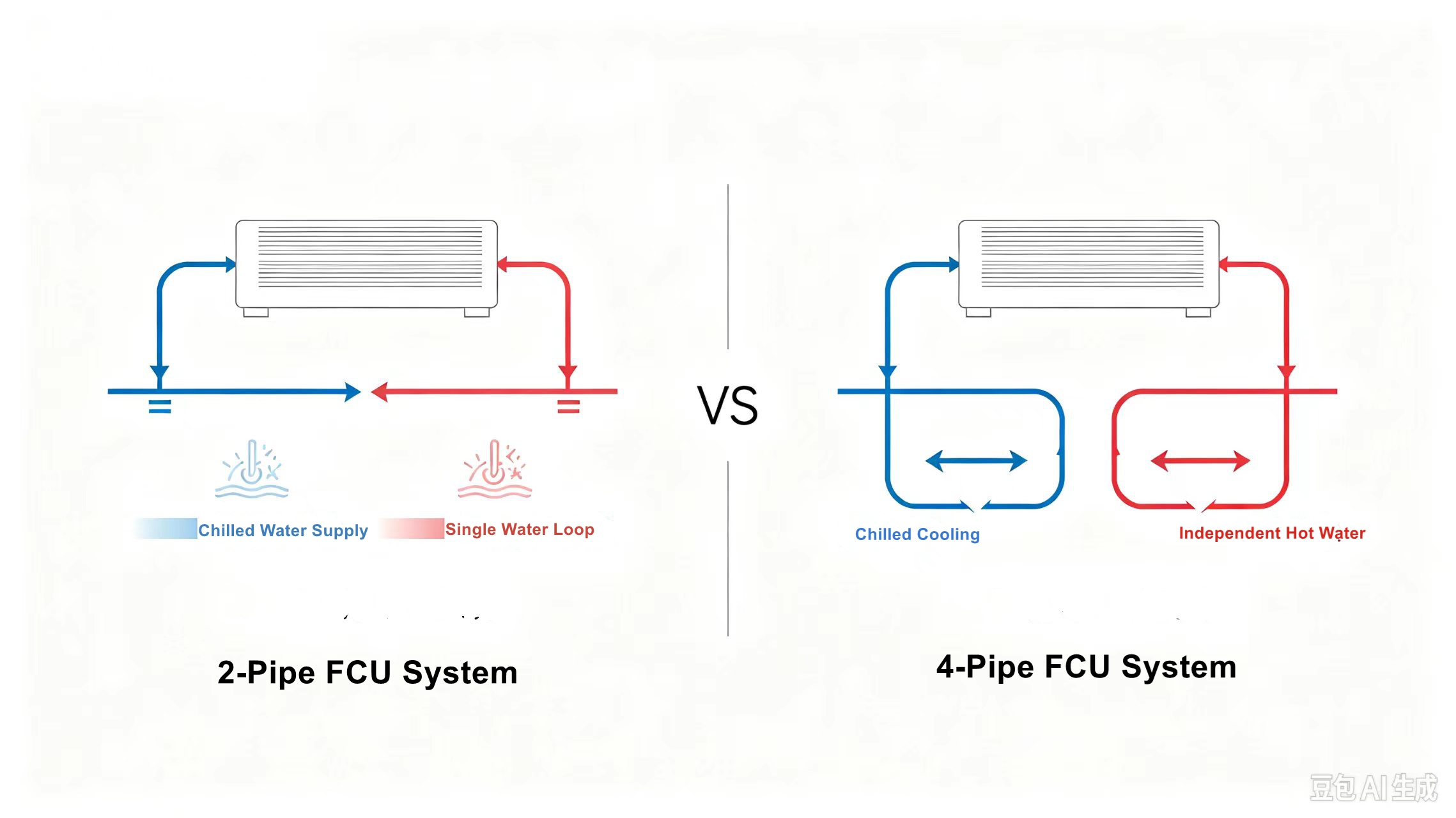

2-Pipe vs. 4-Pipe Fan Coil System Overview
A 2-pipe fan coil system has only one supply water pipe and one return water pipe. The entire building usually operates in a unified mode: chilled water for cooling in summer and hot water for heating in winter, switched according to the season. It features a simple piping structure, easy installation, and lower material and labor costs. However, different rooms cannot run cooling and heating independently at the same time.
A 4-pipe fan coil system includes two independent water circulation loops: one dedicated to chilled water for cooling and another dedicated to hot water for heating. This design allows each room or individual zone to independently switch between cooling and heating modes, regardless of the season or other zones. It is commonly used in high-end hotels, premium office buildings, hospitals, and high-comfort commercial spaces.
Key Specs: How T603 Matches Both Systems
| Item | 2-Pipe System | 4-Pipe System |
|---|---|---|
| Piping Structure | Single supply and return | Dual independent water loops |
| Installation Cost | Lower | Higher |
| Operating Mode | Seasonal unified cooling or heating | Independent cooling and heating by zone |
| T603 Control | Single water valve + 3-speed fan | Cooling valve / heating valve + 3-speed fan |
| Typical Applications | Villas, small offices, economy hotels | High-end hotels, hospitals, premium offices |
From a selection perspective, 2-pipe systems focus on cost control and simple stability, while 4-pipe systems focus on independent control and higher comfort. The T603 fan coil thermostat can be configured for both system types, reducing complexity in project selection.
T603 Core Functions and Control Logic
The T603 fan coil thermostat offers the following core functions:
- Precise room temperature monitoring
- Manual temperature setpoint adjustment
- 3-speed fan control
- Standard water valve relay outputs
- Parameter configuration for both 2-pipe and 4-pipe working modes
- Local independent control with simple commissioning and stable operation
It is suitable for hotel fan coil thermostat projects, office FCU thermostat projects, hospital 4-pipe independent temperature control, and retrofit or new construction projects.
Local Control vs. BMS / Supervisory PC Centralized Control
Important: The T603 fan coil thermostat is designed for local independent fan coil control. The RS485 interface on the T603 is specifically used for connecting to a VRF gateway, not as a general Modbus BMS communication port. If your project requires a Modbus thermostat for centralized BMS control, supervisory PC monitoring, or system networking, you should choose a model that supports these functions. The T605 is one such option. The T605 supports Modbus communication for centralized control and also includes the fan coil control functions of the T603.
If your project requires centralized management, remote monitoring, system networking, building automation system integration, or supervisory PC unified control, you can choose a thermostat model that supports these functions. The T605 is one such option: it supports supervisory PC / centralized control functions and also includes the fan coil control functions of the T603. Depending on project requirements, other centralized-control thermostat models may also be available.
Simple summary:
- Local independent control only: choose the T603 fan coil thermostat
- BMS, supervisory PC, centralized control: choose the T605 or another suitable centralized-control model.
What to Verify with Your Supplier Before Ordering
During inquiry, please inform us of your BMS, supervisory PC, and centralized control requirements so we can recommend the most suitable thermostat solution for your project.
Whether for new construction or retrofit projects, the T603 fan coil thermostat provides stable and budget-friendly temperature control for both 2-pipe and 4-pipe fan coil systems.
If you are selecting a fan coil thermostat, contact our technical team with your system type, water valve configuration, fan type, and control requirements. We can help you match the right FCU thermostat solution for your project.
